Camera Lens Function

The Lens has a variable focal length so that Camera Moves can be made without actually moving the camera. You can modify the camera view using the lens function and the Lens can be set as a key on the Timeline. You may then create fisheye or vertigo effects with this feature.

  1. Go to Stage/Camera/Modify page.

  2. In the Camera section, click on one of the template buttons.

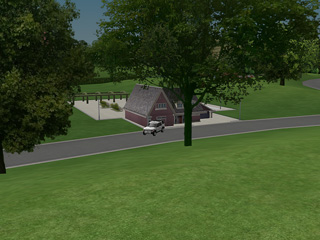

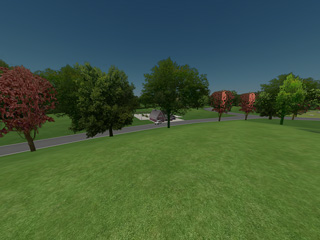

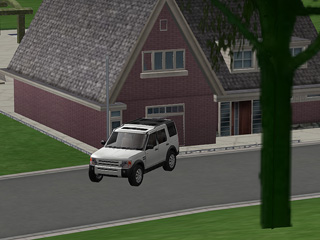

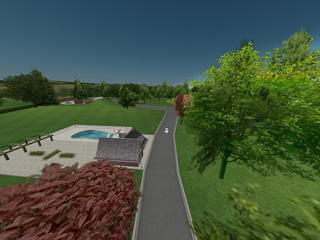

    3. Lens = 80 mm

    Lens = 50 mm

    Lens = 30 mm

    Lens = 20 mm


    Note:

    • You may set different Lens keys in different time frames to create Lens animation. Please read the Lens Track section for more information.

    • Basically, the lower the value , the more of the scene can be seen. However it will be more distortion generated near the edge of the view.
