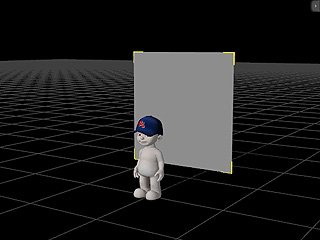

popVideo is a video with alpha-channel data. You can import it into iClone as a board with mask so objects behind it can be seen.
Although you can achieve the same result by manually applying a video to the Diffuse channel and masked video to Opacity channel, utilizing popVideo file ensures you have a 100% synchronized video the popVideo already contains the data for both channels.
Please refer to the popVideo Converter Online Help for more information about creating custom popVideos.
Select any object that contains a Diffuse channel. Double-click on the channel and select a popVideo file.
Alternatively, you can drag the popVideo file from the explorer onto the surface of a target object.

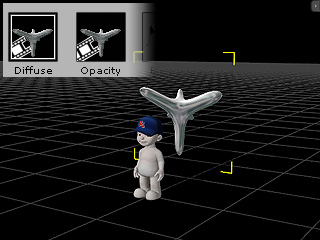

The popVideo will be loaded into the Diffuse channel as well as the Opacity channel.

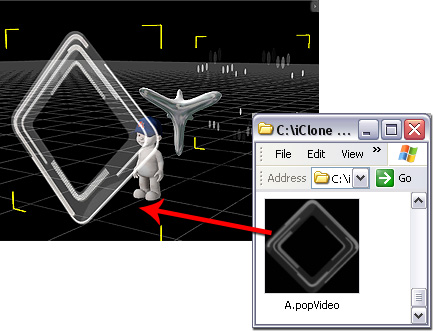

In the explorer, with the Ctrl key pressed and held, drag a popVideo file onto the preview window of iClone to generate a board with the popVideo automatically loaded (with mask).
