Full Conversion for DAZ Genesis Character (New for 5.4)

To reduce the need for repetitive facial or body bone mapping, 3DXchange supports preset profiles to automate the process. Simply drag in your character and 3DXchange will automatically convert it into a talking walking iClone Actor complete with the ability to utilize lip-syncs, face puppet and face key editing. You can also save your custom profiles to simplify the mapping procedure.

To automatically convert a talk-capable, moving DAZ Genesis character to iClone, you need to get a hold of the DAZ Genesis Extension, which is a free bundle that comes with the Facial Pipeline Character Pack.

With the DAZ Genesis Extension, not only can you easily convert, and fully animate all DAZ Genesis characters in iClone, but you can even define and customize your character's own unique expression styles via the enclosed DUF file, or create body morph effects in iClone. You can get this Extension as a free bonus after purchasing the Facial Pipeline Character Pack.

Note:

After purchasing the pack, you will also get a file named Designer's Source Pack.zip. Extract the file and go to the Daz Genesis to iClone folder, in which you will see: iCloneFaceKey.duf: This file is provided by Reallusion, and contains optimized facial expression data time-coded into different frames. Daz Genesis Avatar Face Key Sequence.xls: This file contains two sheets; the Workflow sheet shows the diagram for converting a DAZ Genesis character, and the Face Key Sequence sheets lists the facial expression data time-coded into different frames.

Using the DUF File for Full Facial Expressions

1. In DAZ, create a custom character based on the Genesis rig.

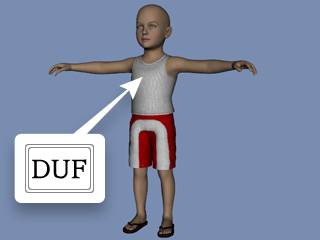

2. Drag and drop the iCloneFaceKey.duf file onto the character. Save as a DAZ project for further modifications.


   Note:

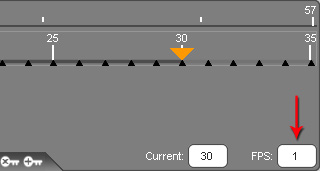

   In order to accelerate the editing, previewing and exporting in DAZ, it is highly suggested that you set the FPS to 1.

3. Export the entire character into FBX format.
   1. In the FBX Options panel, activate the boxes as shown in the illustration below and click the Edit Morph Export Rules button.

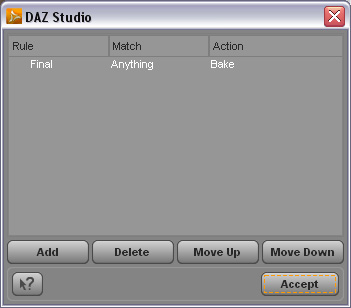

   2. Edit so that only the default rule (Final) is kept in the list. Click the Accept button.

4. Load the exported FBX into 3DXchange. Make sure the Import Animation box is checked in order to import the facial expressions and click the OK button.

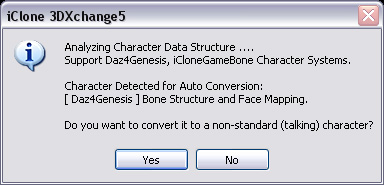

5. You will be asked if you want to auto convert the model into a Non-standard Character. Click the Yes button.

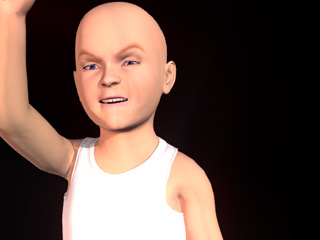

6. Export the character to iClone, where you can enjoy animating the body motions and utilizing the complete facial expression spectrum of the character.

Enhancing Mild Facial Expressions in iClone

After being converted into iClone, the DAZ Genesis Character can be given facial expression by utilizing the facial puppet tools. However, you may find that the expressions may be too mild for your purposes. To remedy this, you can adjust the various values of specific facial muscles. View Video Tutorial.

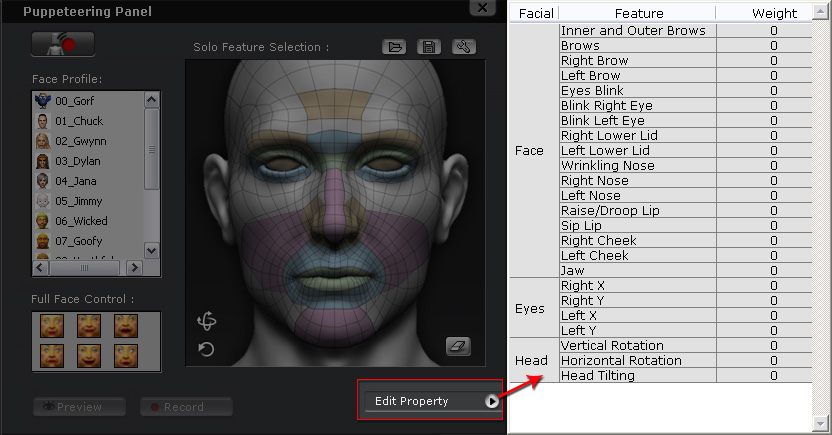

1. In iClone >> Facial Puppeteering >> Property >> Advanced panel, you can determine the percentage of the maximum value according to the mouse direction by entering in your own custom values to the cells next to a specific item.

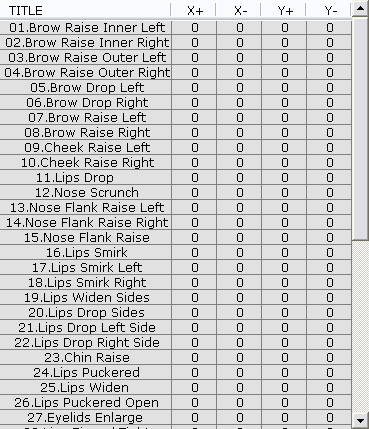

2. If the expression is still too mild, then you can open the detailed muscle panel by pressing the F2 key and adjusting the weights in the four cells next to the specific muscles.

   Please refer to the Relation Between Puppet Profile and Muscle Mapping section for more information.

Enhancing Mild Facial Expressions by Editing DUF in DAZ

If you want to enhance or customize one or more specific but mild facial expressions of the converted DAZ Genesis character, in addition to the method described in the previous section, you can also either adjust any expression via the Expression Editor, or modify the source DUF file in DAZ as described below. View Video Tutorial

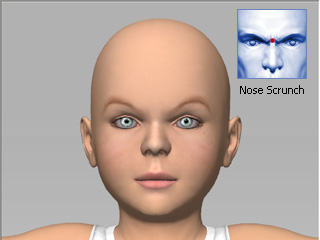

1. In 3DXchange, open the Expression Editor and select the specific thumbnail from one of the tabs you want to customize (in this case, the Nose Scrunch in the Muscle tab is taken as an example).

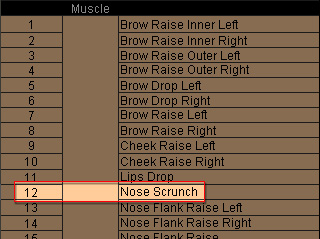

2. Refer to the Daz Genesis Avatar Face Key Sequence.xls >> Face Key Sequence sheet to find out the second corresponding to Nose Scrunch (the index number is 12, which means the character displays a nose scrunch expression at the 12th second).

3. Open DAZ and load the project file you created in the previous section (step 2).

   Note:

   In order to accelerate the editing, previewing and exporting in DAZ, it is highly suggested that you set the FPS to 1.

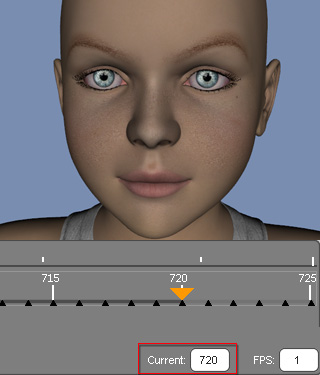

4. Go to the 12th second (the 720th frame).

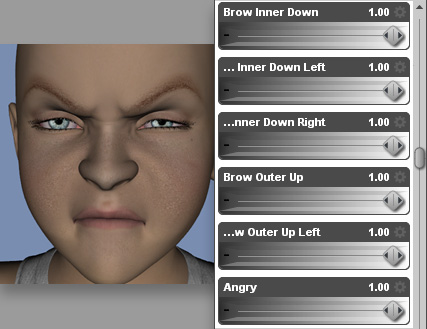

5. Use the sliders to adjust the facial expression to an ideal one.

6. Export the entire character as an FBX file again.
7. Load into 3DXchange and auto convert the character as described in the previous section.

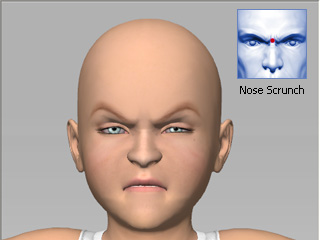

8. If you check the Expression Editor, the Nose Scrunch is now auto-updated to the new one.

9. Convert the model into an iClone Non-standard Character.
