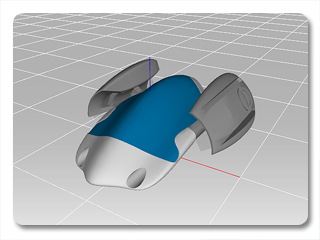

Original Orientation

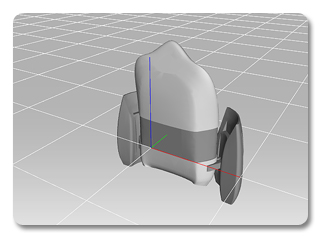

Rotated Around Red Axis
If the file loaded shows incorrect orientation when compared with the dummy, you may adjust the model right by these Rotate control items. The rotating directions around three axes map to the coordinate system in iClone.
Around Red Axis - Click the up arrow to increase the value of the scene orientation and click the down arrow to decrease it around the Red Axis. You may also key in the value into the edit box to rotate the scene.
|
|
|
|
Original Orientation |
Rotated Around Red Axis |
Around Green Axis - Click the up arrow to increase the value of the scene orientation and click the down arrow to decrease it around the Green Axis. You may also key in the value into the edit box to rotate the scene.
|
|
|
|
Original Orientation |

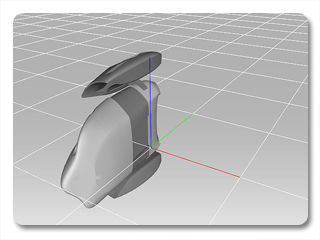

Rotated Around Green Axis |
Around Blue Axis - Click the up arrow to increase the value of the scene orientation and click the down arrow to decrease it around the Blue Axis. You may also key in the value into the edit box to rotate the scene.
|
|
|
|
Original Orientation |

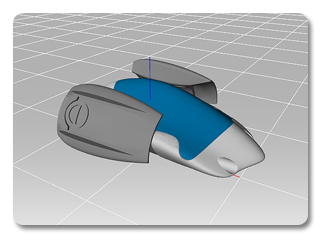

Rotate Around Blue Axis |
Tips:
Press the arrow buttons over 3 seconds to double the speed for increasing / decreasing the value. Press the arrow buttons over 6 seconds to triple the speed for increasing / decreasing the value.
Press the arrow buttons and drag your cursor to increase / decrease the value. The value won't change if you keep your cursor un-moved, which is useful if you want to set the value slowly without using the keyboard.
