Modifying and Replacing Meshes in Models

If you want to create a new custom appearance that is different from the initial look of the model, then you can update each mesh node of the model by means of the Replace Model feature in 3DXchange.

The supported file formats for this pipeline are:

Illustration

Supported File Format

.vns

.iProp

.FBX

.skp

.3ds

.obj

Modifying Mesh

Video Tutorial: Argile

You can sculpt a mesh node with an external 3D modeling tool in order to generate a new appearance in your model.

  1. Load a model file of the format described above.

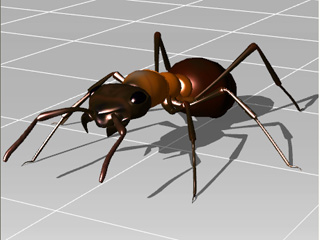

    Single-mesh model

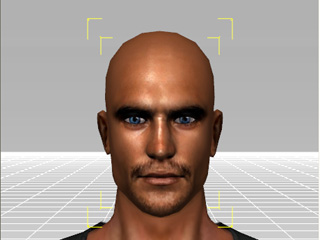

    Head mesh of a character

  2. Select the mesh node to be sculpted.

  3. Export the mesh as an OBJ file.

  4. Sculpt the OBJ file in an external 3D modeling tool (e.g. 3DS Max, Maya, Argile, Zbrush etc.). Save the sculpted model as OBJ file after you finish sculpting.

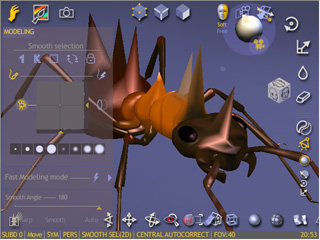

    Modify the mesh with Argile.

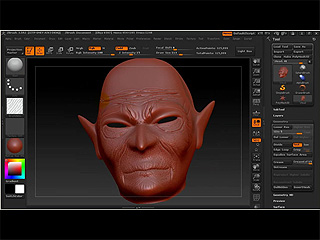

    Modify the mesh with Zbrush.

    (Please not that Zbrush allows you to export

    Normal Map image.)

  5. Click the Replace Mesh button and load the sculpted OBJ file.

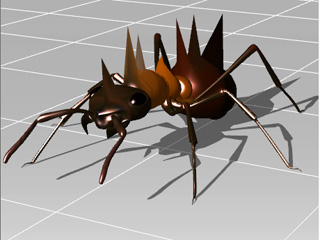

    Mesh replaced in 3DXchange

    Mesh replaced in 3DXchange

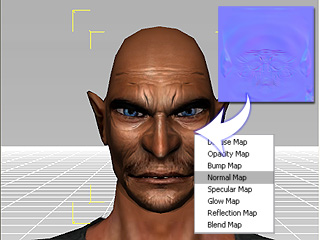

    Drag the Normal Map onto the face mesh

    with right mouse button and apply it to the

    Normal channel can increase the wrinkles and

    details on the face.

  6. Export (Ctrl + E) the model.

  7. Load the prop or character into iClone.

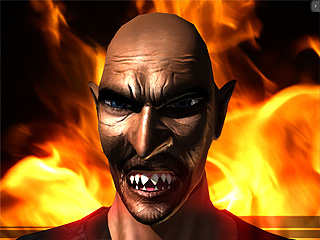

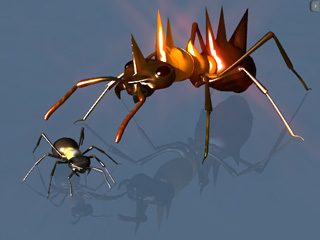

    Result in iClone



Note:
