Vector Objects

Vector objects can be produced in DrawPlus and are supported by CrazyTalk Animator. They remain in vector format as the project is exported into SWF file. In CrazyTalk Animator, vector-based objects maintain their resolution as you zoom in and out the camera.

Vector object in DrawPlus

Close-up view in CrazyTalk Animator

These objects are produced by certain tools in DrawPlus as listed in the table below.

Category

Creating Tools

Vector Objects

Note

Curve

Pencil Tool

Pen Tool

Straight Line Tool

Freeform Paint Tool

  • If you use these tools with Tablet Devices, the thickness of the curve can vary by the pressure changes from the device, which may automatically convert the Vector Curves into Image Curves.

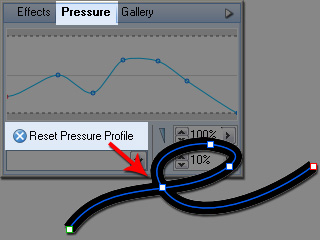

  • You may reset it to Vector Curve by clicking the Reset Pressure Profile button.

    • Dimension Line

    Dimension Tool



    Artistic Text

    Frame Text

    Artistic Text Tool

    Frame Text Tool



    QuickShapes

    QuickShapes Tool

  • The Quick Clock is a unique interactive shape tool that CrazyTalk Animator may display incorrectly. It is highly recommended not to use this tool to produce SWF for CrazyTalk Animator.

    • In DrawPlus

    In CrazyTalk Animator

    Transform

    Envelope Tool

    Roughen Tool
