When you save a material file, the default thumbnail will shape like a ball. |
|
To make it clearer to the users, you need to change the thumbnails. |
|
|
|
|
How it works: |
1.Convert the material files to prop files.
2.Load thumbnails to these prop files.
3.Convert the prop files back to material files. |
|
For more details, please follow the step-by-step instructions below. |

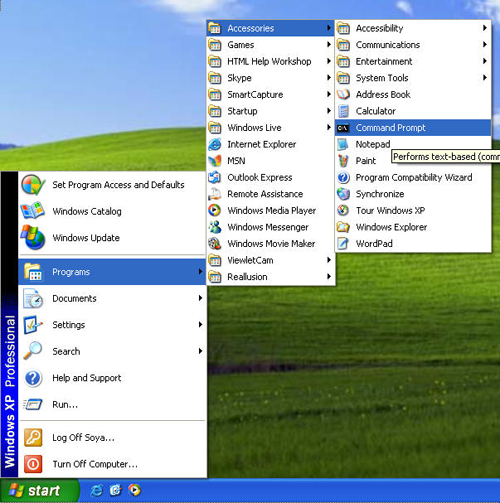

1.Open Command Prompt. |
|
|
|
2. Go to the folder where your material files are. |
|
For example, type in cd C:\Program Files\Reallusion\iClone 3\Template\iClone Template\Materials Lib\My Materials |
|
|
3. Type in ren *.iMtl *.vns to change the material files to vns files. |
|
4. Copy the vns file to the props folder in iClone custom template folder. |
|
iClone custom template folder can usually be found at
C:\Documents and Settings\All Users\Documents\Reallusion\Custom\iClone 3 Custom |
|
|
5. |
Open iClone and go to Set/props. You will find your material files there. |
|
6. |
Right click on the material file which you want to change the thumbnail, and choose Load thumbnail. |
|
|
|
|
|
7. Rename the vns files back to Material files by going back to Command Prompt and type in ren *.vns *.iMtl. |
|
8. You are now ready to submit your very first G3 texture pack! |
|
|
